OUR SERVICES :
* Thru Hole Assembly      (Wave- Soldering)

* SMT Assembly. ( Air Convection    Reflow  Soldering) Functional    Testing.

* Burn-In Testing.

* Wire Harnessing.

* Finished Product Assembly.

* Worldwide Component
    Sourcing.

* Product Development &    Indizinisation.

* Thru Hole SMT Conversion.

PRINTED CIRCUIT BOARDS
◙
 Products : ----------



Process Highlights :
Does Produce Highest Quality At Lowest Cost.
Produces Consistent Results Under Controlled Parameter.
Incoming  &  Online Inspection.
No Faulty Solder Joints, Thus Avoiding Additional Cost And Unreliability.
Soldering Problems Are Solved By Process Control, Not By Mere Touch-Up.

100 % Testing & Final Inspection Before Dispatch
In Process Sampling  Inspection.


LIST OF MACHINERY :

1 Wave Soldering Machine Eps – 300 Eps – Pune
2 Air Convection Reflow M/C Rf -300,  Eps – Pune
3 Stencil Printer Ems Sp 20/20 Ems – Pune
4 Automatic Cut & Bend M/C Ca-11control Signals- Delhi
5 Burn-In Chamber -109eec – Mumbai.
6 Universal Calibrator Unical Masibus – Gandhinagar
7 Glue Dispensersmt 100 Bhsmt – Mumbai
8 Oscilloscope 100mhztds1000tektronix
9 Dc Regulated Power Supply Sesupra Enterprises
10 - 3 Ph Variable Transformer.
11 P-3voltamp- Navi Mumbai9multimetersrishabh Instruments
12 Magnifying Glasslense Pune
13 High Voltage Testerpe100primier Electro system
14 Automatic Pick & Place M/C Laser Quadra Tws, Italia




PLANT  & MAN-POWER :

Plant :    6000 Sq.Ft. Production / Office Area.
Production Assembly  Area Is Protected By  Antistatic Mats & Wrist Bands  & Fully Temperature Controlled Enviroments

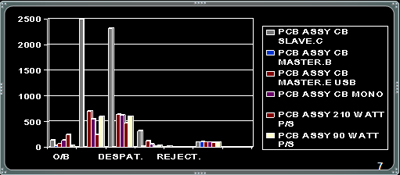

TESTING YIELD / ANALYSIS
CUST NAME : CPS COLOR INDIA P.LTD
PERIOD :
2005-2006
AVG - 99.11%

MODEL :                                        TESTED.   OK   REJECTED

PCB ASSY CB SLAVE.C                  2705     2673     32

PCB ASSY CB MASTER.B              1731      1719     12

PCB ASSY CB MASTER.E USB          87        87       00

PCB ASSY CB MONO                     1327      1315      12

PCB ASSY 210 WATT P/S                771        755      16

PCB ASSY 90 WATT P/S                 1271      1264     07

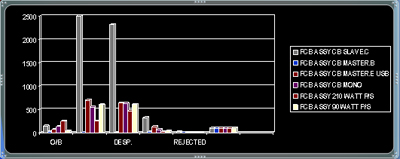

TESTING YEILD / ANALYSIS
CUST NAME : CPS COLOR INDIA P.LTD
PERIOD :
2006-2007
AVG : 99.01%

MODEL :                                        TESTED.   OK   REJECTED

PCB ASSY CB SLAVE.C                  2343     2320     23

PCB ASSY CB MASTER.B                    5          5        00

PCB ASSY CB MASTER.E USB       644      637       7

PCB ASSY CB MONO                        632       627      5

PCB ASSY 210 WATT P/S                476        470      6

PCB ASSY 90 WATT P/S                  612       605      07



Testing has been done on Jig itself , all the parameters has been checked as per Test-Instructions .
For power-supplies 90 Watt & 210 Watt Actual load conditions has been worked out & same has been simulated on Testing Jig. Thus preventing failure at customer end .
